Tesla Powerwall

Tesla Powerwall is a rechargeable home battery system that stores energy from solar or from the grid and makes it available on demand. Compact and easy to integrate, it provides backup power, time-based control and solar self-consumption.

Get a quote Pricing available on request
  • Finance options available
  • 10 Years Warranty Protection
  • Smart Charge Points Regulation Compliant

Power everything

Your lighting, your washing machine, and everything in between can be powered by the Powerwall's 5kW continuous and 7kW peak power output.

Energy to spare

Choose to pair with your home's solar panels or draw energy from the grid when it's cheapest with a time of use tariff.

Manage your home's power

Use the Tesla mobile app to monitor your Powerwall, manage output and view energy usage history.

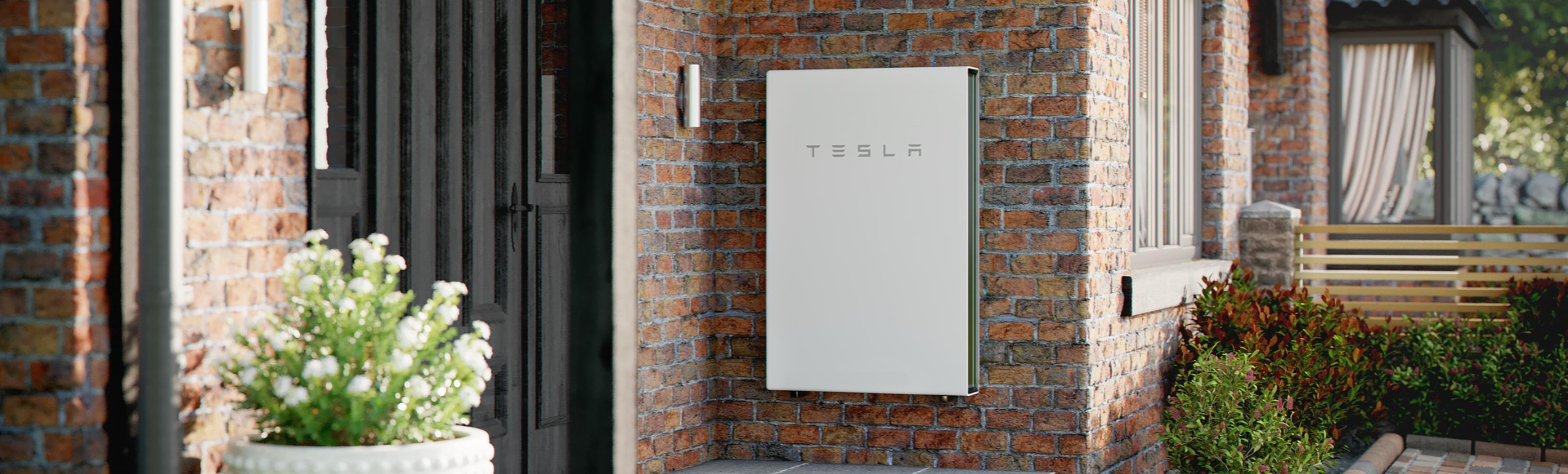

Tesla Powerwall installed

Monitor and optimise

Use the Tesla app to monitor your home's energy production and consumption, set your preferences to optimise for energy independence, outage protection or savings.

Control your Powerwall from anywhere, with remote access and instant alerts.

Industry-leading innovation

Tesla is at the forefront of the electric revolution, producing a range of innovative products that in 2021 alone saved over 20 billion miles of driving emissions. With over 100,000 employees, Tesla aims to build a world powered by solar energy and running on batteries.

PluginPros is proud to be an approved Tesla Powerwall installer, and getting started with us is easy. Simply get in touch for your personalised installation quote. You'll be asked for some basic contact information and will be sent a text link to our short, remote home survey. Once we've received your completed survey, your local PluginPros office will contact you within 24 hours with your personalised quotation.

Our installation price starts from £8995 ex VAT and includes the Tesla Powerwall 13.5kw battery and Gateway providing energy management and monitoring for solar self-consumption, time-based control, and backup.

Get a quote

Track your usage

Power Flow shows in real-time the power generated from your solar system, stored and discharged by Powerwall, used by your home, and exported or imported from the grid.

Versatile

The Powerwall's compact, all-in-one construction features versatile mounting options for indoor or outdoor spaces.

24/7 backup protection

The Powerwall automatically becomes your home's energy source when the grid goes down, keeping energy going without upkeep, fuel or noise.

Over-the-air updates

Seamless over-the-air updates to keep your Powerwall running smoothly.

Dimensions (L x W x D)1150 mm x 753 mm x 147 mm
Weight125 kg
MountingFloor or wall mounted
AC Voltage230 V
Total Energy14 kWh
Usable Energy13.5 kWh
Grid Standards (UK)G83 / G59
Real Power, max continuous3.68 kW / 5kW (charge and discharge)
Apparent Power, max continuous3.68 kVA / 5kW (charge and discharge)
Power Factor Output Range+/- 1.0 adjustable
Internal Battery DC Voltage50 V
Round Trip Efficiency90%
Feed-In TypeSingle Phase
Operating Temperature-20°C to 50°C
Optimum Temperature0°C to 30°C
Operating HumidityUp to 100%, condensing
EnvironmentIndoor and outdoor rated
Ingress RatingIP67 (Battery and Power Electronics) / IP56 (Wiring Compartment)
Noise Level @ 1m< 40 dBA at 30°C
Compliance CertificationsIEC 62109-1, IEC 62109-2, IEC 62619, UN 38.3
Grid ConnectionWorldwide Compatibility
EmissionsIEC 61000-6-1, IEC 61000-6-3
EnvironmentalRoHS 2011/65/EU, WEEE 2012/19/EU, Battery Directive 2006/66/EC, REACH
SeismicAC156, IEEE 693-2005 (high)

Tesla Powerwall FAQs

What is Powerwall?

Powerwall is a rechargeable home battery system that stores energy from solar or from the grid and makes it available on demand. With its built-in battery inverter, Powerwall is compact and easy to integrate into your home. As with all Tesla products, new features will be added to Powerwall with over-the-air updates.

Can I add a Powerwall to my existing solar system?

Yes, Powerwall can be integrated with your existing solar system. Powerwall is compatible with solar inverters from SMA, SolarEdge, Fronius, Enphase micro inverter, Delta and ABB. Tesla continue to explore compatibility with other inverter companies.

What are the different components that make up a Powerwall system?

A Powerwall system consists of at least one Powerwall battery and a Gateway. The Gateway provides energy management, metering and monitoring functions for Powerwall. The Gateway also includes communication functions for up to 10 Powerwalls, and receives over-the-air updates for the system.

How can I monitor Powerwall operation?

As long as your Powerwall is connected to the Internet, you will be able to use the Tesla mobile app to monitor your home energy system in real time and view your energy usage history. If the Internet connection is lost, Powerwall will continue to operate with its most recent settings but you will not be able to monitor operation or change settings until connectivity is restored.

What is the Power Flow in the app?

Power Flow shows real time power generated from your solar system, stored/discharged by Powerwall, used by your home, and exported/imported from the grid. It can be accessed from the Powerwall home screen. You will have real-time visibility into your home energy system.

Want to know more?

Contact your local PluginPros team for a quote.
